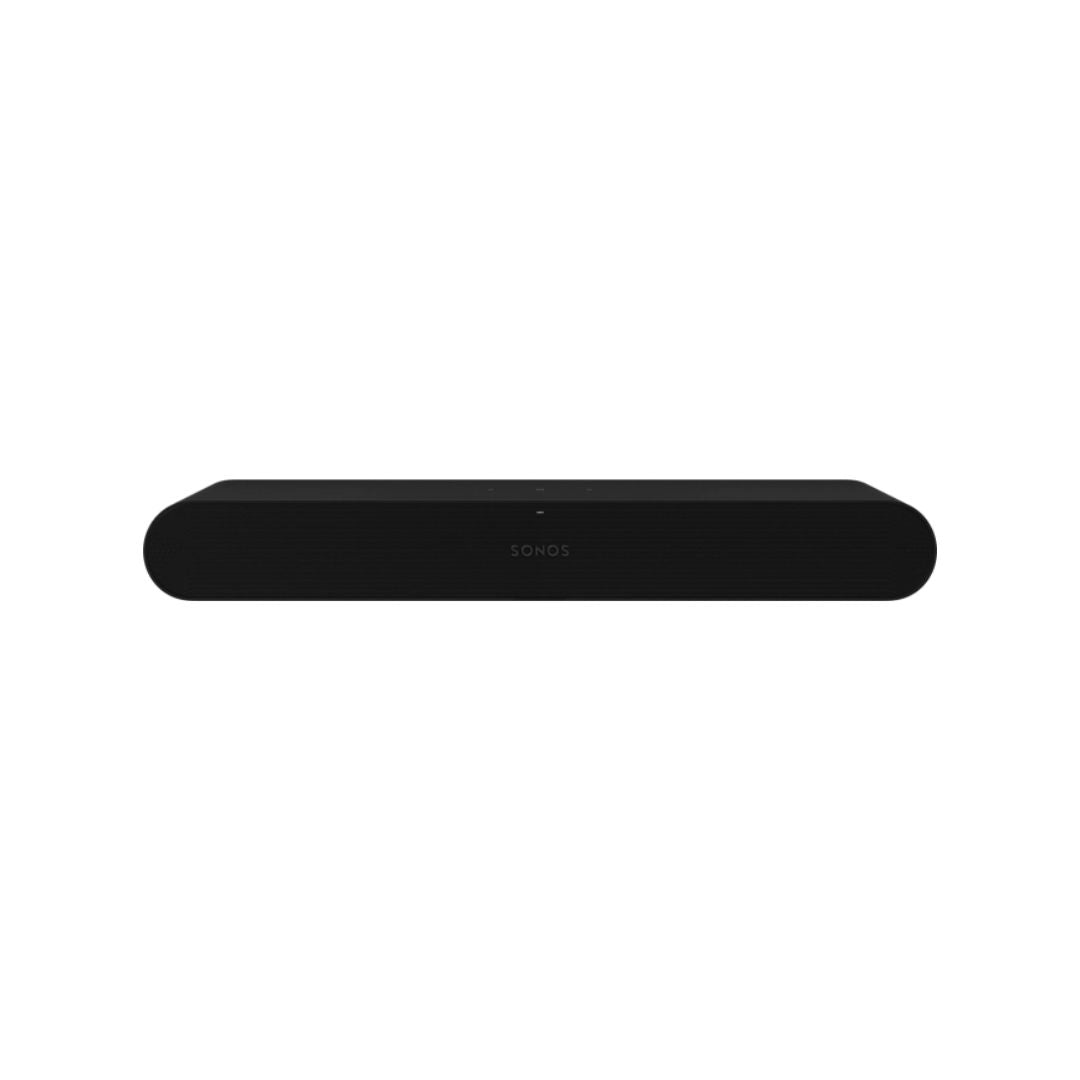

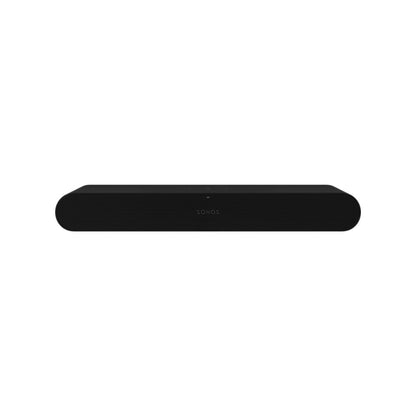

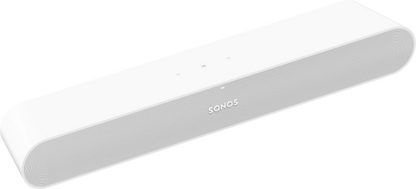

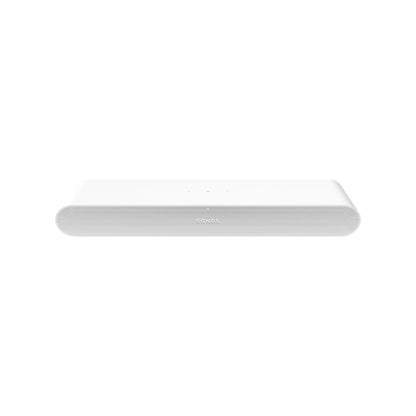

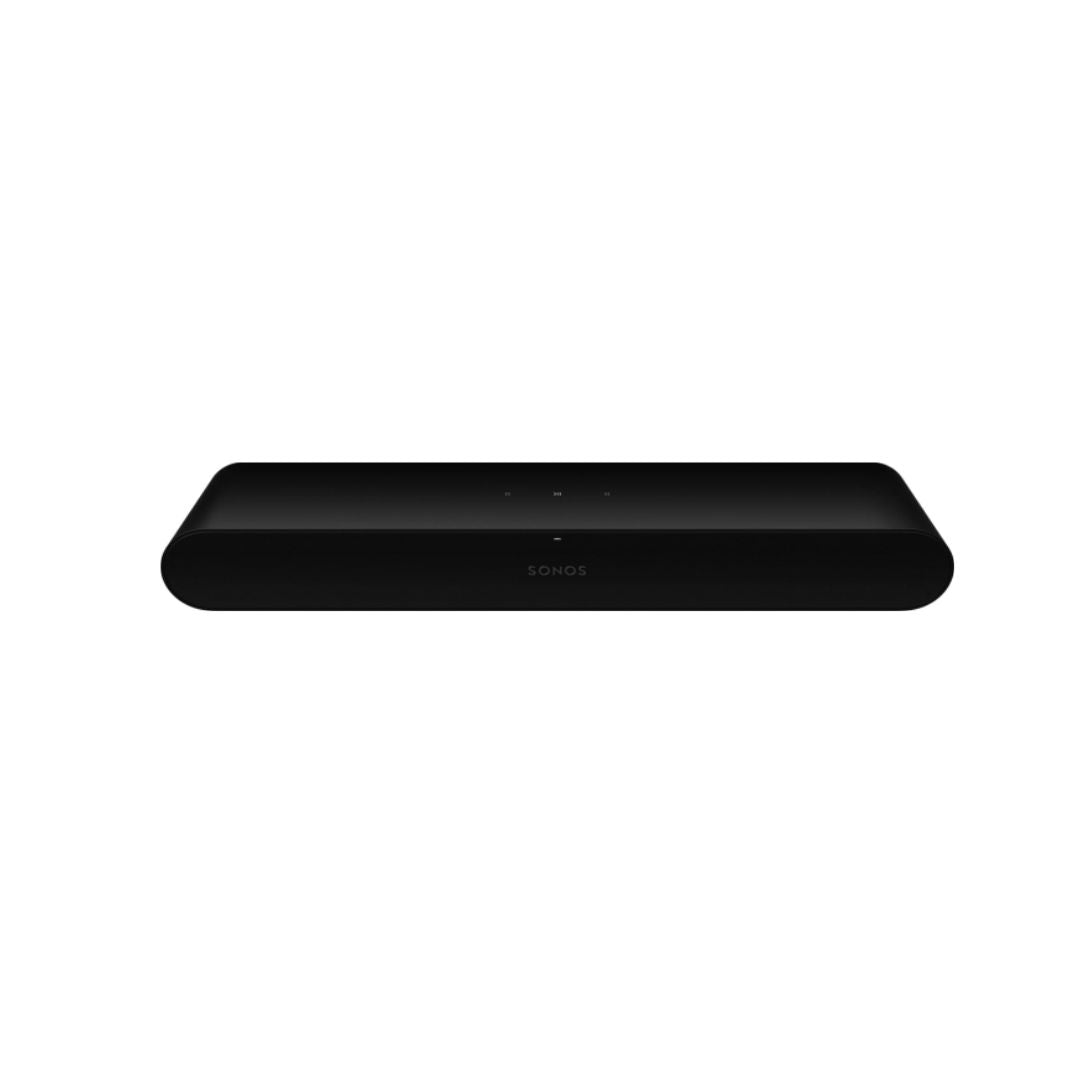

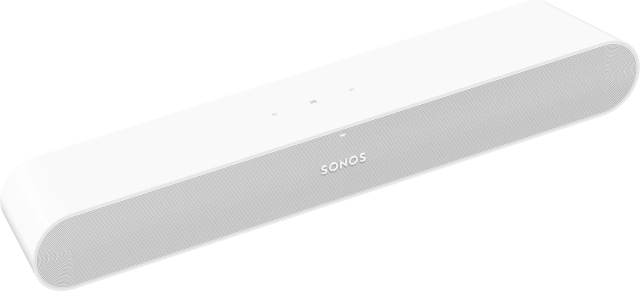

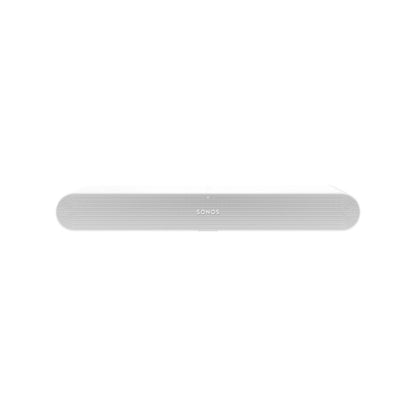

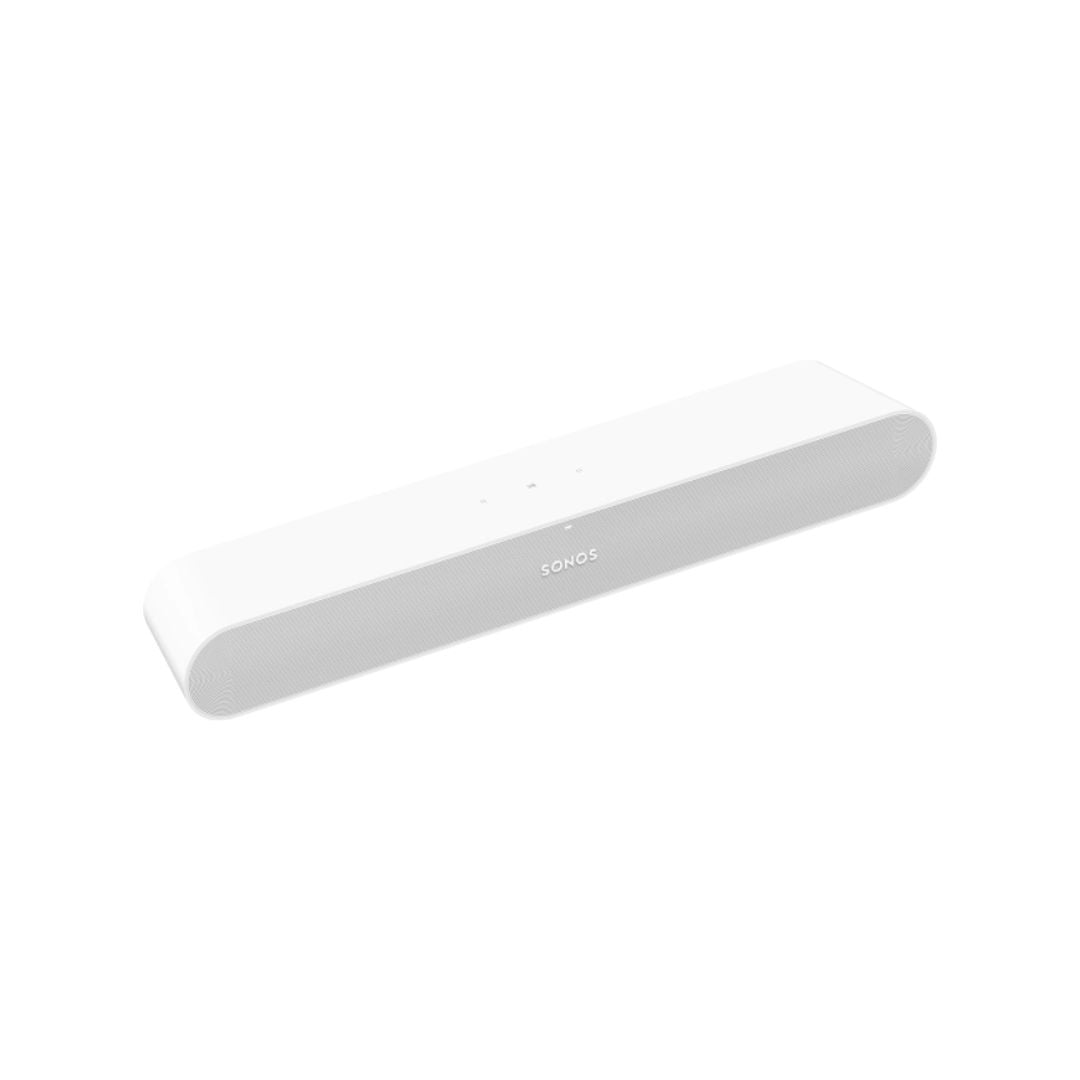

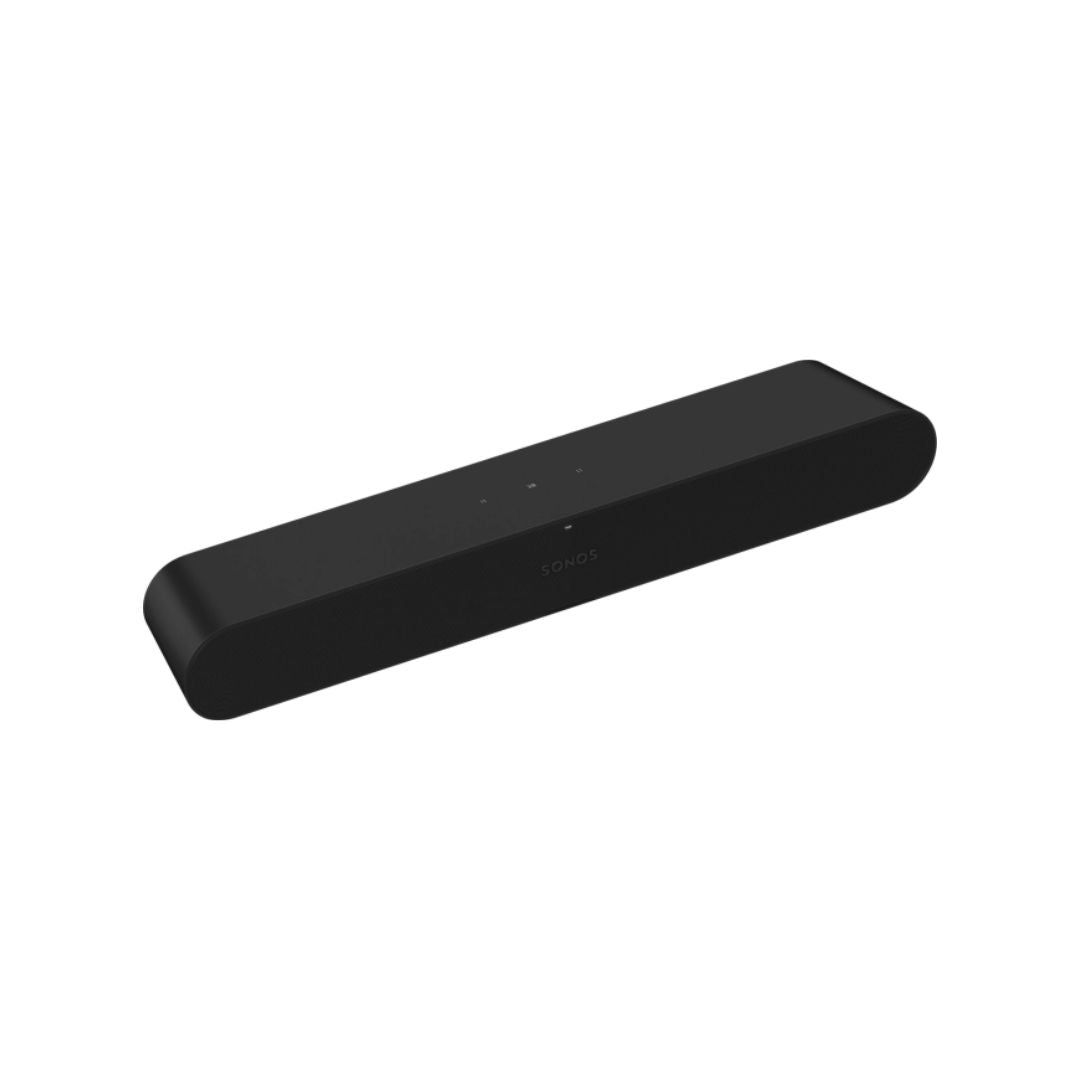

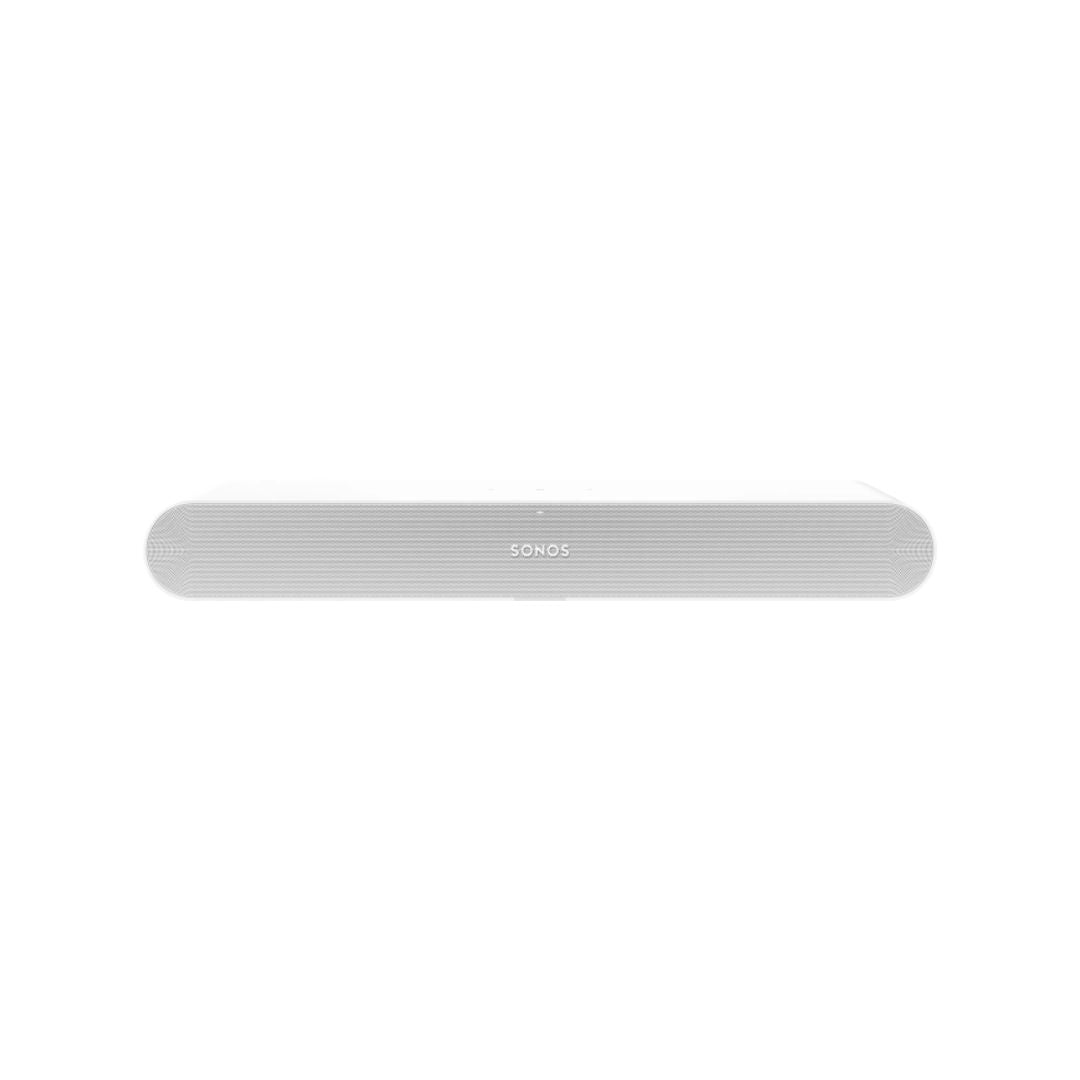

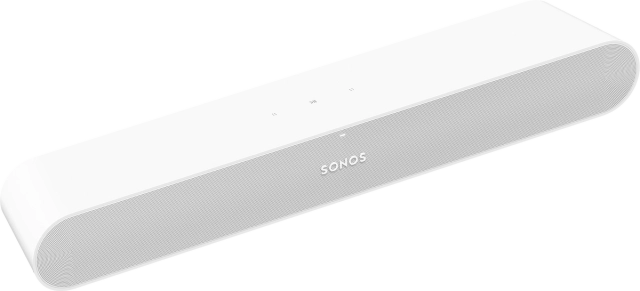

Powerful sound, compact design. Elevate your audio experience effortlessly!
Experience precisely balanced sound, including crisp dialogue and solid bass, plus streamlined control with your TV remote, the Sonos app, Apple AirPlay 2, and more. It only takes two cables and a few minutes to get set up, and the forward-facing acoustics make Ray ideal for an enclosed space, like a shelf in your TV stand. Enjoy the flexibility to create the Sonos system you want over time when you add speakers for surround sound and multiroom listening.
Tech Specs
Audio
Amplifiers - All four Class-D digital amplifiers have been fine-tuned to the soundbar's unique acoustic architecture.
Tweeters - Two tweeters create a crisp high-frequency response.
Midwoofers - Two high-efficiency mid-woofers ensure faithful playback of mid-range frequencies and solid bass.
Bass Reflex System - Proprietary low-velocity port design minimizes distortion and rounds out low-end frequencies.
Adjustable EQ - Use the Sonos app to adjust bass, treble, and loudness.
Trueplay - This software measures the acoustics of the room then fine-tunes the soundbar. Supported iOS device required.
Speech Enhancement - Turn this setting on in the Sonos app to boost voice frequencies and clarify dialogue.
Night Sound - Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds.
Home Theatre Audio Formats - Stereo PCM, Dolby Digital, DTS Digital Surround* (*This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded.
Details + Dimensions
Dimensions
Height: 70 mm
Width: 557 mm
Depth: 93 mm
Weight
1.9 kg
Colours

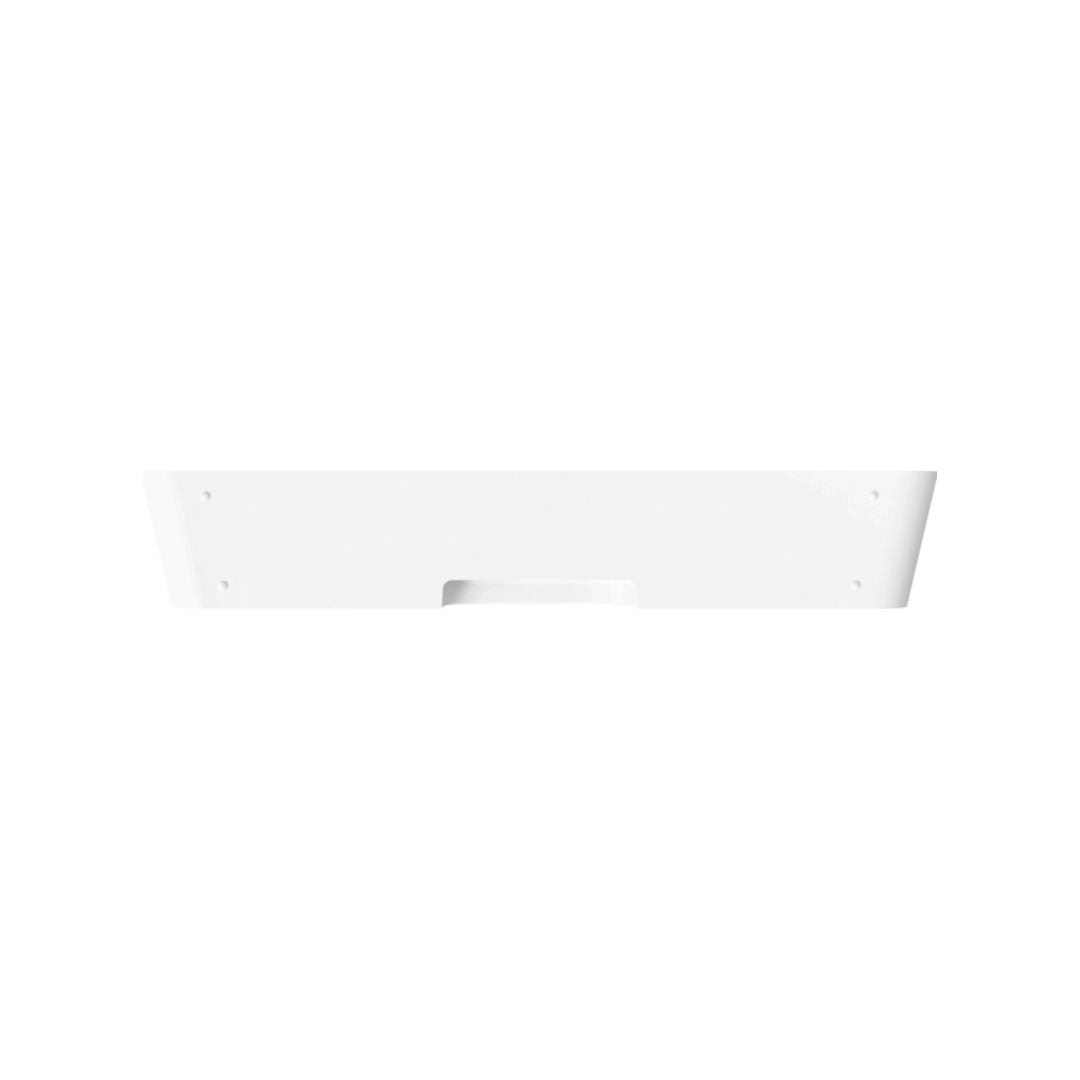

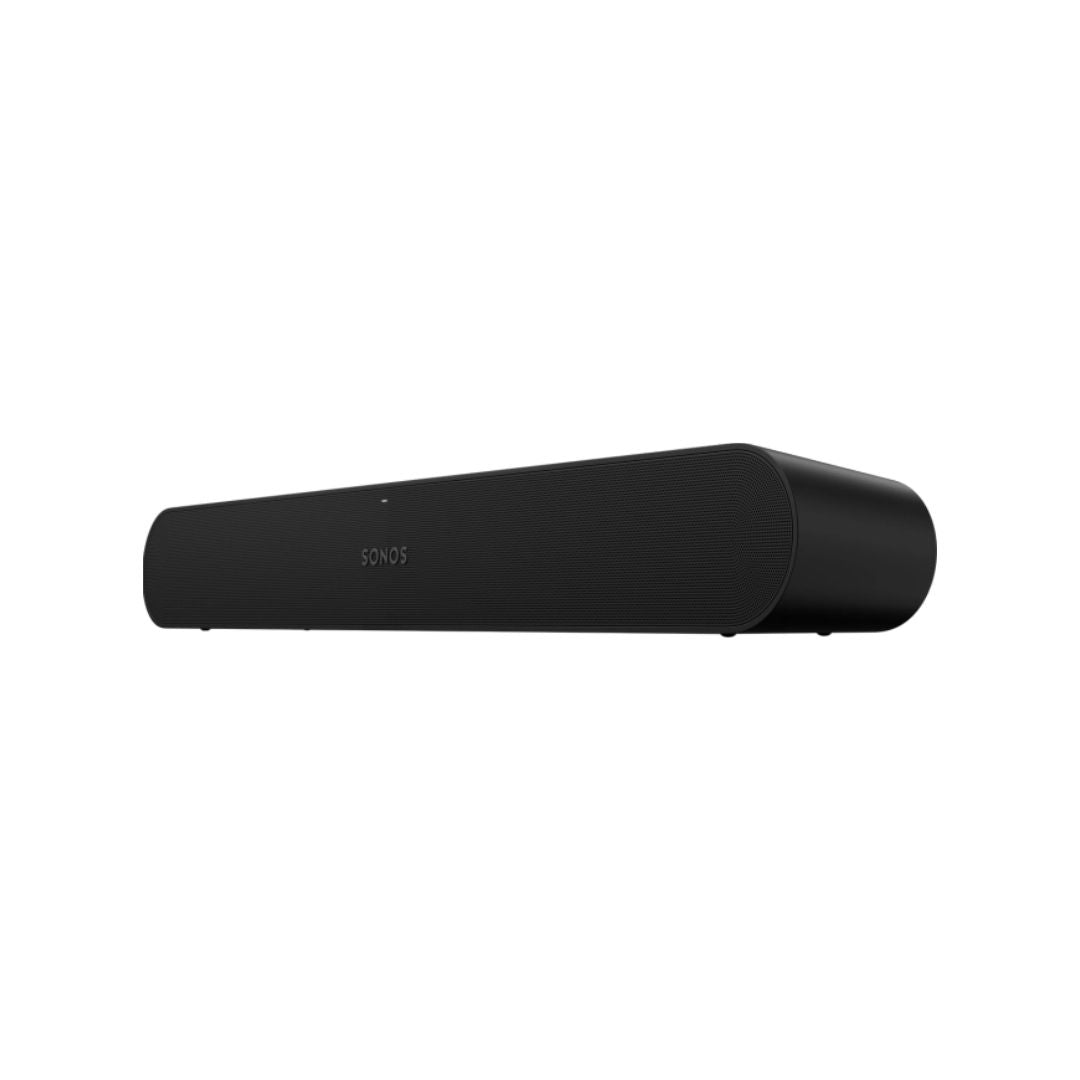

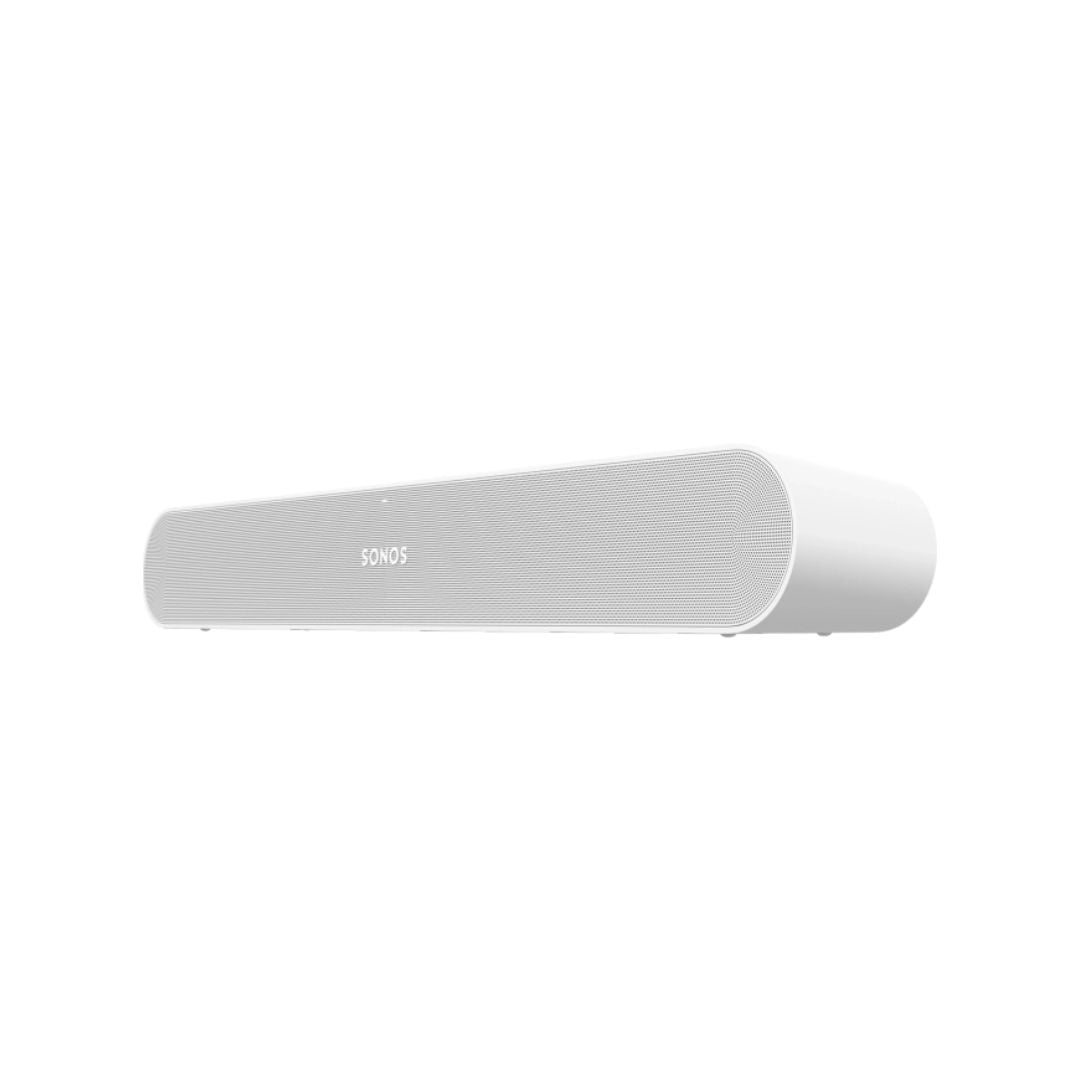

Black, White
Finish
Matte

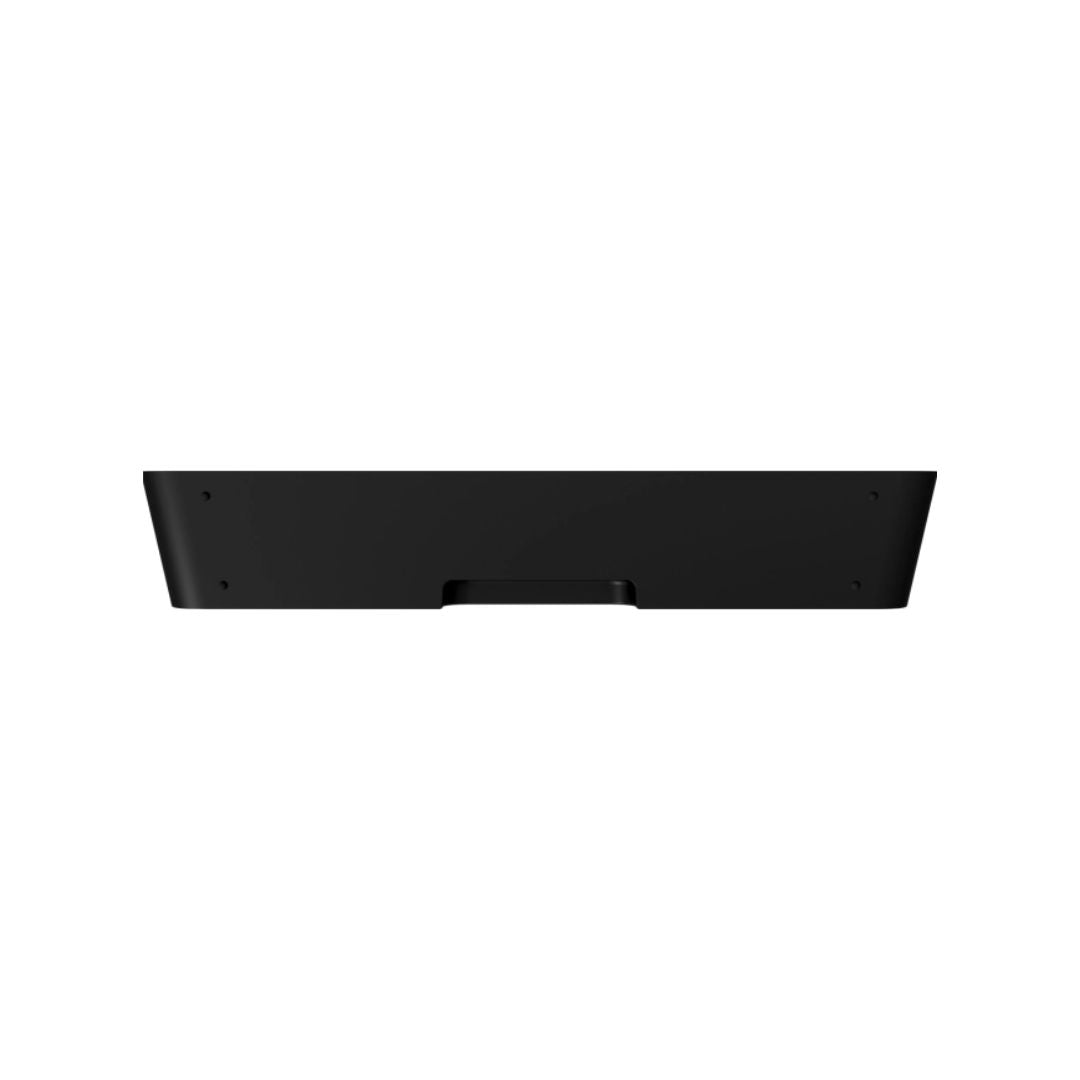

Mounting
M5 threaded mounting socket

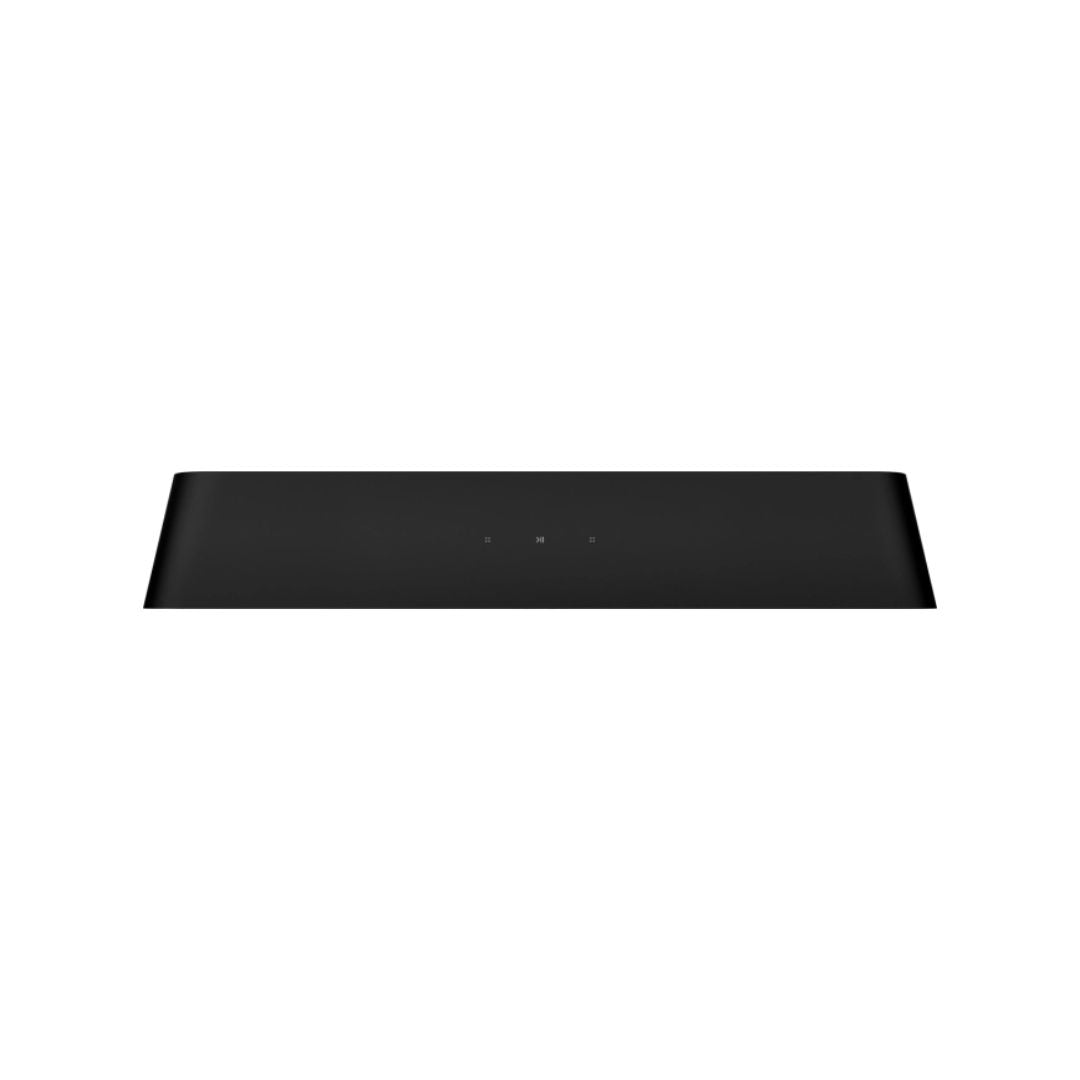

Controls

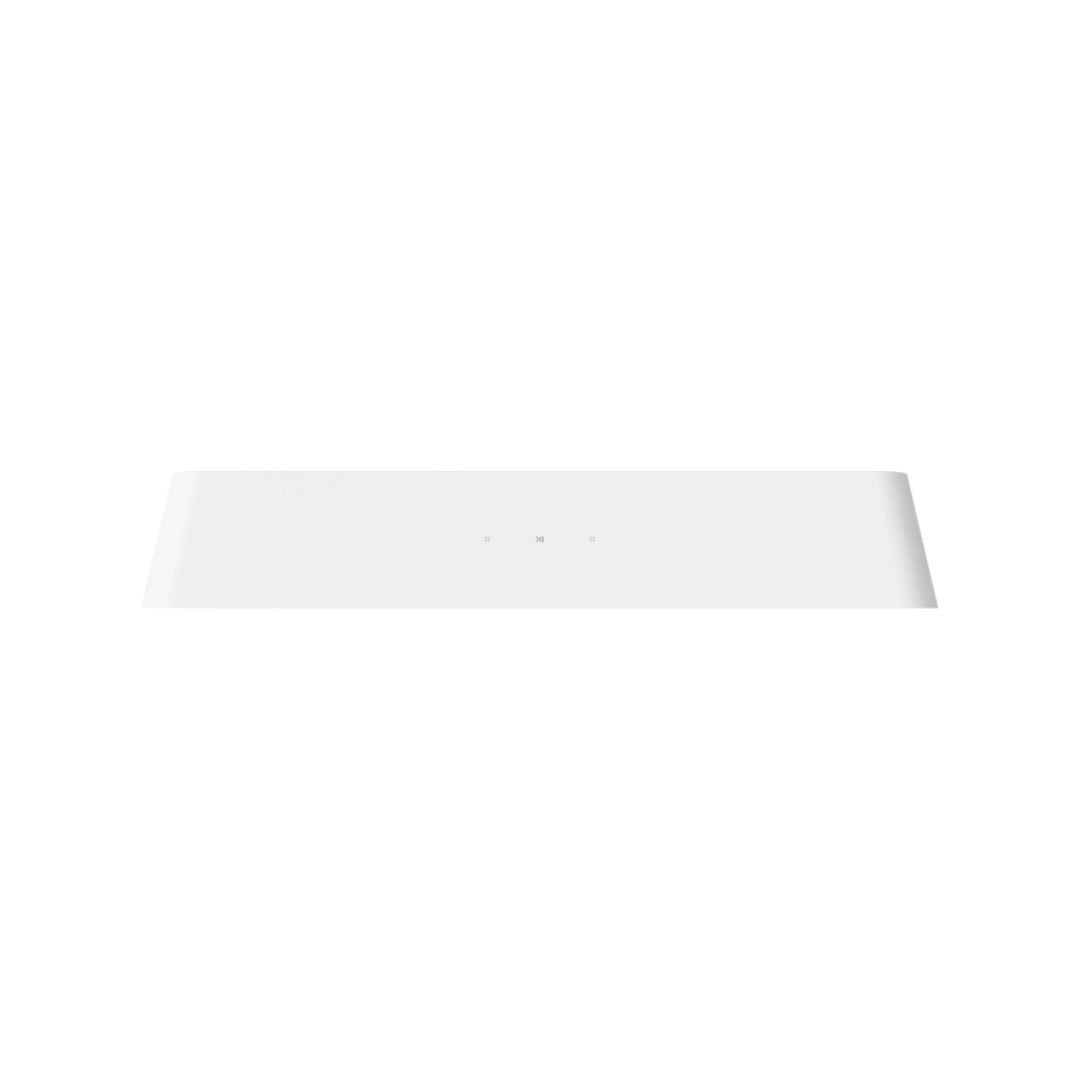

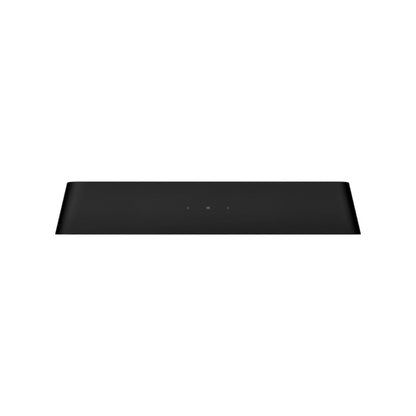

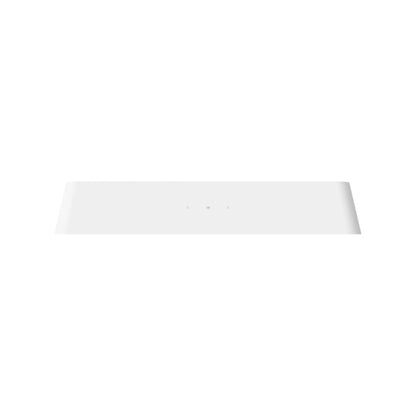

Use the capacitive touch controls on the product to play, pause, skip, replay
LEDs
Light on the product indicates connection, mute status and errors.

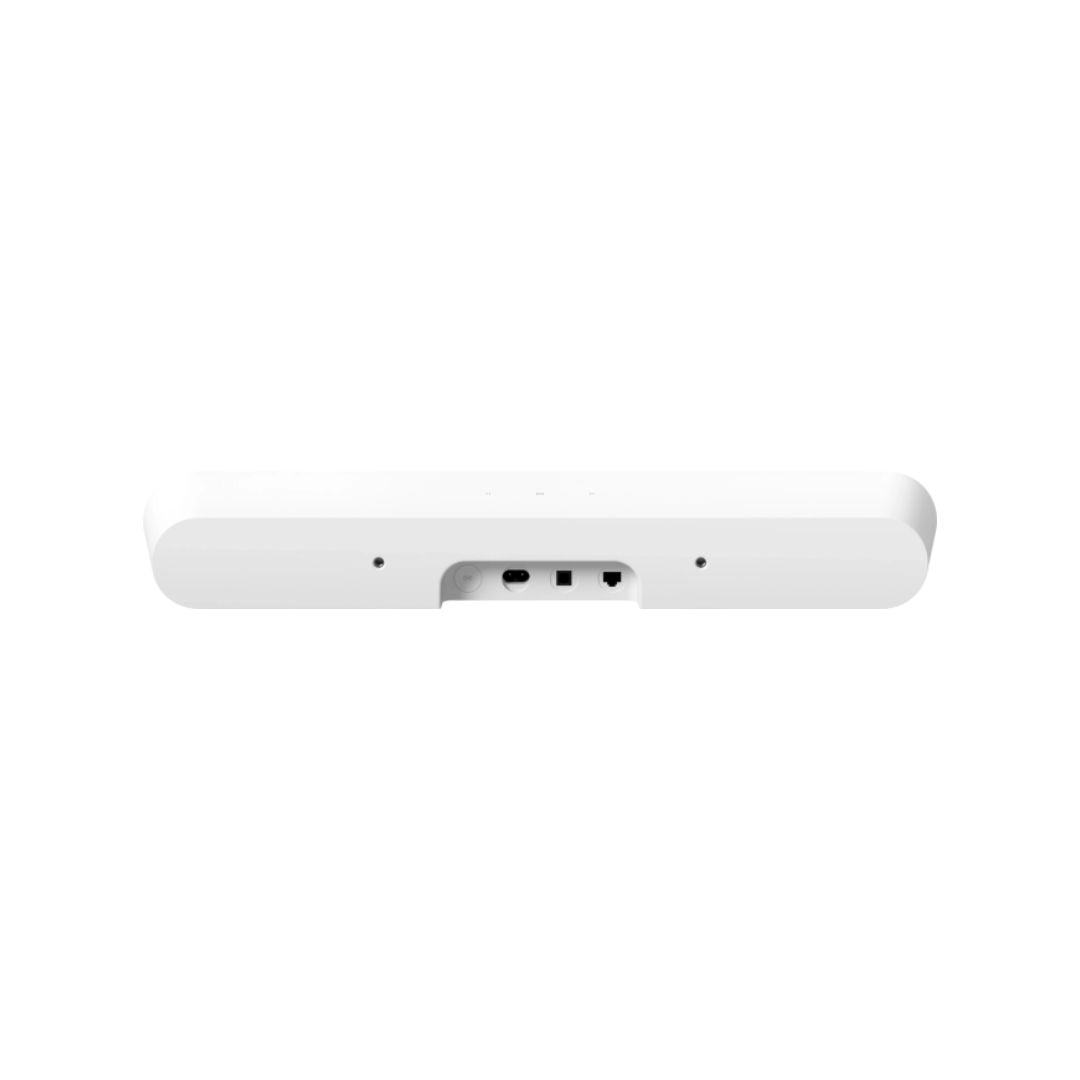

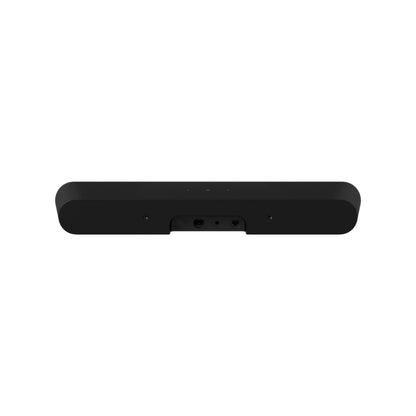

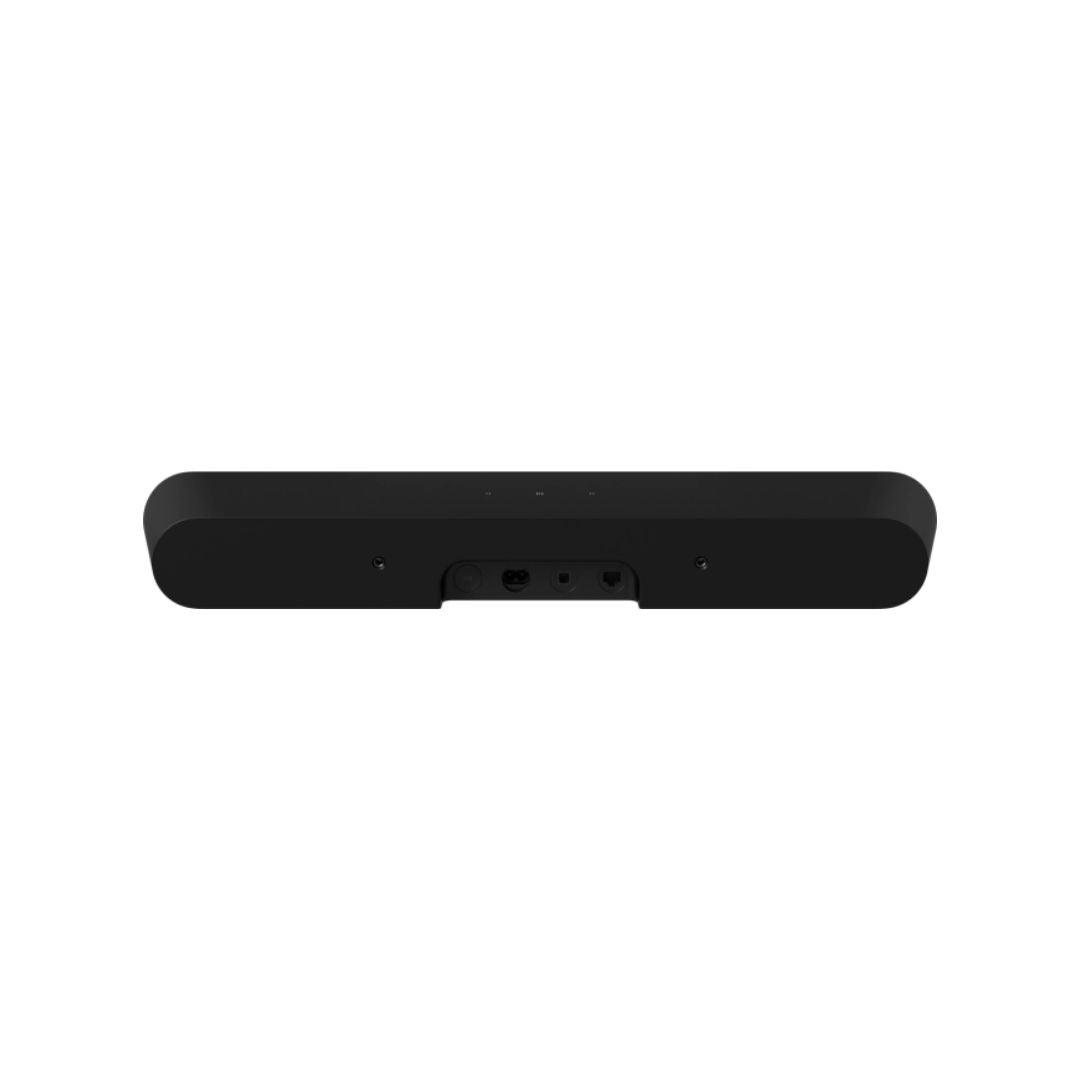

Power + Connectivity
WiFi - Connect to WiFi with any 2.4 GHz 802.11/b/g/n broadcast-capable router.
Optical - Connect to your TV's optical port with the included cable.
Ethernet - 10/100 port for hardwiring to your router
Infrared (IR) Receiver - Syncs the soundbar with your TV remote for streamlined control
Voltage - Auto-switching 100-240V 50/60Hz AC universal input
CPU - Quad Core, 1.4 GHz A-53
Memory - 4GB NV, 1GB SDRAM
Apple AirPlay 2 - Works with AirPlay 2 on Apple devices iOS 11.4 and higher.
Box Contents
Sonos Ray
Power Cable I - Length: 6 ft (2 m)
Optical Audio Cable - Length: 4.9 ft (1.5 m)
Documentation - Quickstart Guide and legal/warranty information
Requirements
WiFi - Internet connection
Power Source - Nearby electrical outlet
Sonos app - The latest generation of the Sonos app running on a compatible device
